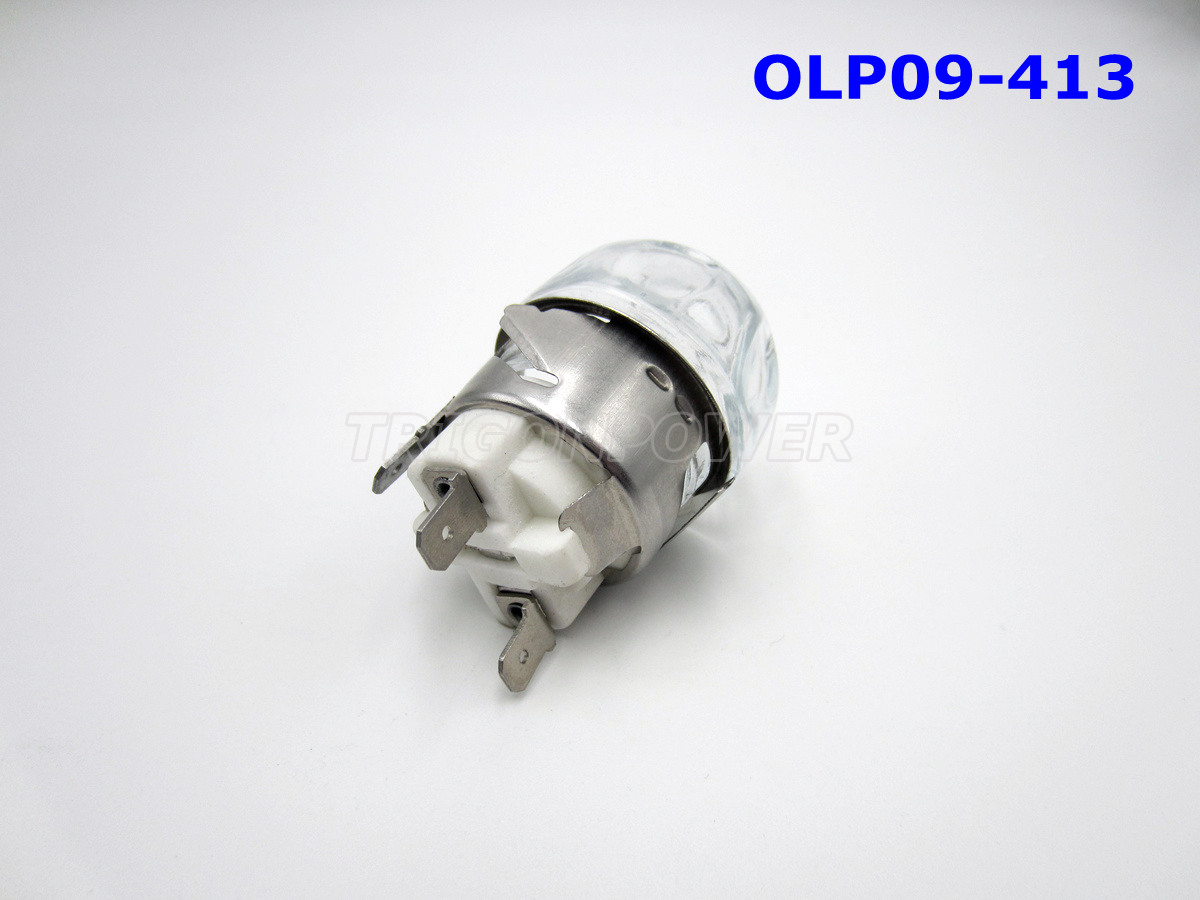

Galvanized Steel / Stainless Steel Terminal Oven Lamp Holder OLP09-413
Description:
This product’s main function is lighting in the oven machine’s internal barbecue space. With the help of oven lamp we could clearly observe the conditions of barbecued foods.When the oven machine is working, the temperature of the oven machine’s internal barbecue space would increase to more than 300 degrees centigrade. So we have selected the suitable material to manufacture products to ensure the oven lamp could work well and long lifetime under the high temperature working environment. In the meanwhile, this material had passed the RoHs tests, so we could prevent the oven lamp could not release any hazardous substance to pollute the barbecued foods during the barbecue time. The full-transparent glass cover should let the lamp's bright light evenly propagate toward to the barbecaue area.
Specifications:
| ITEM | INFORMATION | NOTE |
| TYPE | G9 STANDARD | |
| NOMINAL VOLTAGE | AC 250V | BY TUV |
| NOMINAL CURRENTS | 2A | BY TUV |
| WORKING VOLTAGE | AC 110~220V 50/60 Hz | |
| VOLTAGE RESISTANCE | > AC 450V | |
| LIGHTING POWER | 25w | |
| WORKING TEMP. | T300 | |
| WORKING LIFE | > 1000 hours | Under T300 |
| TERMINAL |
| RAW MATERIAL | Galvanized steel / stainless steel / copper | |
| SIZE | Faston 6.3x 0.8 | |
| GLASS COVER |
| RAW MATERIAL | soda-lime / high borosilicate glass | |
| APPERANCE | Bowl / hemisphere / polygon | |
| SIZE | 40 /41 /43 /54 mm | |
| COLOR | Full-transparent / semi-frosted | |
| LAMP HOLDER |
| RAW MATERIAL | high frequency porcelain | |
| COLOR | bright white | |
| FIXING RING |
| RAW MATERIAL | stainless steel - 304 | |
| COLOR | bright silver | |
| E14 METALLIC RING |
| RAW MATERIAL | galvanized steel / copper | |
| COLOR | bright silver | |
Applications:
1. Freestanding Oven
2. Built-in Oven
3. Mini Oven
4. Microwave Oven
5. Gas Cooker
6. Steam Oven (with sealing washer)
7. Industry Oven
8. Other Home Appliances with lighting demand
Advantages:
Good electrical properties(insulation & conductivity)
The glass and porcelain are the good insulation material for electrical products, our
ovenlamp’s max voltage resistance value is more than AC 450V. So this good insulating
property could ensure the user’s safety. And the stainless steel and galvanized steel are all the good conductor material which could ensure that the lamp could work well.
Be convenient for installation
We design the exclusive product structure for the fixing ring part. The fixing ring is a flexible trigeminal wing-style structure part. With the three flexible wings we could install the ovenlamp easily into the fixing hole on the board surface of barbecue space. With the three wings and fixing point we could fix the oven lamp accurately on the right position on the board.
Be convenient for cleaning and maintenance
For the reason of material, you could clean the surface of glass cover easily. The oven lamp is fixed tightly on the board surface of barbecue space, so even an unprofessional housewife could change the lamp bulb breezily.
