Concise And Elegant Square Style E14 Oven Lamp With
Professional Design To Meet Commercial Oven Demands
Description:
This model oven lamp is one of the important components for gas cooker
machines. This product’s main function is lighting in the gas cooker machine’s
internal barbecue room. With the help of oven lamp we could clearly observe the
conditions of barbecued foods. When the gas cooker machine is working, the
temperature of the oven machine’s internal barbecue room would increase to
more than 300 degrees centigrade. So we have to selected the suitable material
with good high temperature resistant properties to manufacture products to
ensure the oven lamp could work well and long lifetime under the high
temperature working environment. In order to ensure the food safty, all of these
raw material had passed the RoHs tests, so we could prevent the oven lamp could
not release any hazardous substance to pollute the barbecued foods during the
barbecue process.
We set a large bulb room to contain big power bulb, such as 40w bulb. So this
type oven lamp could supply enough brightness for large barbecue room, and
could meet the professional cooking’s demands. The flat shape bulb room with
good thermal designs to ensure the bulb could stably work for long time. In order
to avoid the intense lights from the large power bulbs hurt the user’s eyes, we
make the full-frosted design on the glass cover. This design could ensure that the
users could observe the barbecue food’s situation under the soft and enough
brightness.
Specifications:
| ITEM | INFORMATION | NOTE |
| TYPE | E14 STANDARD | |
| NOMINAL VOLTAGE | AC 250V | BY TUV |
| NOMINAL CURRENTS | 2A | BY TUV |
| WORKING VOLTAGE | AC 110~220V 50/60 Hz | |
| VOLTAGE RESISTANCE | > AC 450V | |
| LIGHTING POWER | 25w /40w | |
| WORKING TEMP. | T300 | |
| WORKING LIFE | > 1000 hours | Under T300 |
| TERMINAL |
| RAW MATERIAL | Galvanized steel / stainless steel / copper | |
| SIZE | Faston 6.3x 0.8 | |
| GLASS COVER |
| RAW MATERIAL | soda-lime / high borosilicate glass | |
| APPERANCE | polygon appearance | |
| SIZE | Square 65 x 80 mm | |
| COLOR | full-frosted glass | |
| LAMP HOLDER |
| RAW MATERIAL | high frequency porcelain | |
| COLOR | bright white | |
| FIXING RING |
| RAW MATERIAL | stainless steel - 304 | |
| COLOR | bright silver | |
| E14 METALLIC RING |
| RAW MATERIAL | galvanized steel / copper | |
| COLOR | bright silver | |
Advantages:
1. Enough soft brightness for large barbecue room
In order to avoid the intense lights from the large power bulbs hurt the user’s eyes, we make
the full-frosted design on the glass cover. This design could ensure that the users could
observe the barbecue food’s situation under the soft and enough brightness. We set a large
bulb room to contain big power bulb, such as 40w bulb. So this type oven lamp could supply
enough brightness for large barbecue room, and could meet the professional cooking’s
demands.
2. Good high temperature resistance property

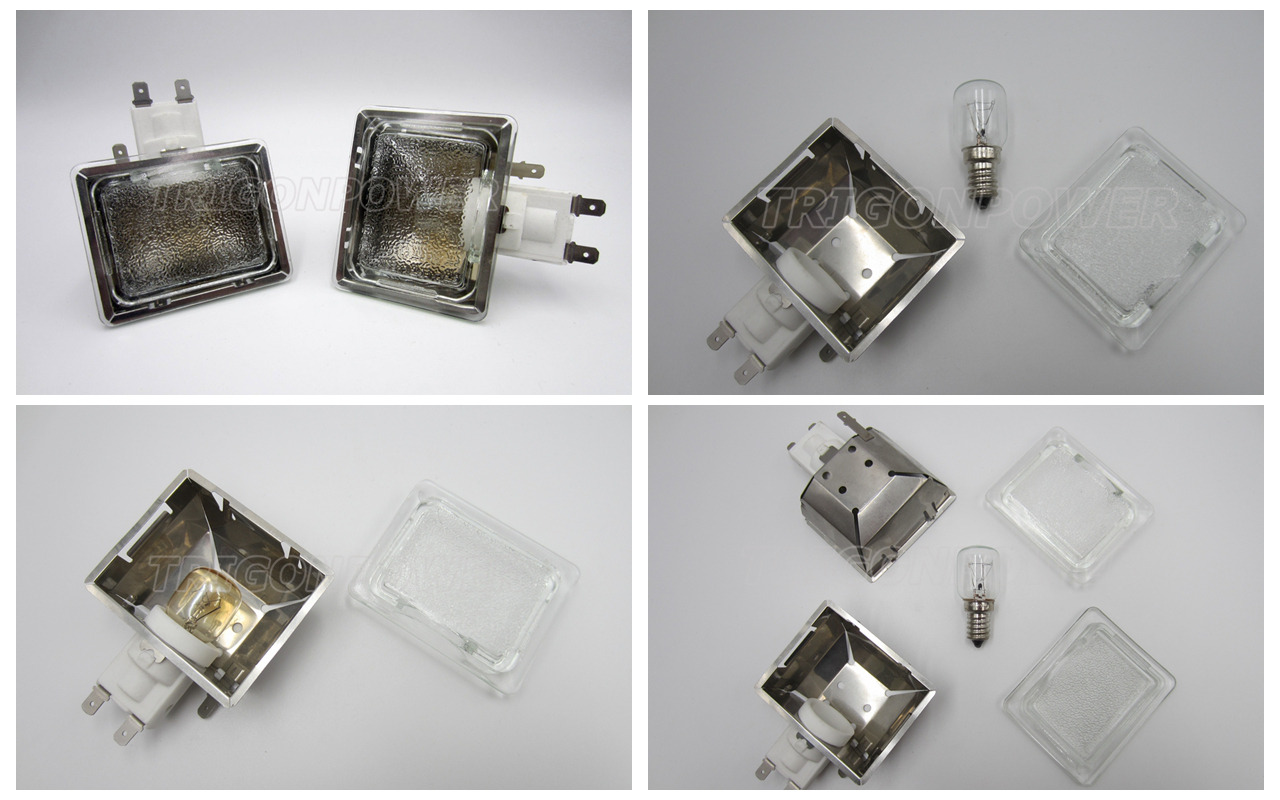

The oven lamp is composed by glass cover, lamp holder, fixing ring, terminal, E14 metallic
ring and E14 lamp bulb etc. 6 parts. Below table shows the fusion point information for these
parts’ raw material. According to these information, we known that all the raw material are
good high temperature resistant material. For the limit of the lamp bulb’s sealing material’s
abilities, the lamp bulb’s working temperature just reach 300 degrees centigrade. So a total
oven lamp’s max working temperature is 300 degrees centigrade. The T300 is good enough
to meet the oven machine’s working requirements. The flat shape bulb room with good
thermal designs also to ensure the bulb could stably work for long time.
| component | Raw material | Fusion point of material |
| Glass cover | Soda-lime / high borosilicate glass | > 600 degrees centigrade |
| Lamp holder | High frequency porcelain | > 1500 degrees centigrade |
| Fixing ring | Stainless steel - 304 | > 1500 degrees centigrade |
| Lamp bulb | Glass/steel/tungsten filament | > 600 degrees centigrade |
3. Good electrical properties(insulation & conductivity)
The glass and porcelain are the good insulation material for electrical products, our
ovenlamp’s max voltage resistance value is more than AC 450V. So this good insulating
property could ensure the user’s safety. And the stainless steel and galvanized steel are all
the good conductor material which could ensure that the lamp could work well.
4. Long working lifetime
We use the best raw materials and technologies to manufacture the parts for oven lamp
products. For example:
1) We use the best tungsten filament and the best sealing material in the market to
manufacture the lamp bulbs.
2) The glass cover must through the glass tempering process increase it’s strength.
3) The lamp holder also need several exclusive processes, such as continuous forming, aging
treatment and super high temperature sintering, to ensure it’s hardness.
Such these reliable production control measures could guarantee the oven lamp with stable
quality and long lifetime services.
5. Be convenient for installation
We design the exclusive product structure for the fixing ring part. The fixing ring is a flexible
trigeminal wing-style structure part. With the three flexible wings we could install the
ovenlamp easily into the fixing hole on the board surface of barbecue space. With the three
wings and fixing point we could fix the oven lamp accurately on the right position on the
board.
6. Be convenient for cleaning and maintenance
For the reason of material, you could clean the surface of glass cover easily. The oven lamp is
fixed tightly on the board surface of barbecue space, so even an unprofessional housewife
could change the lamp bulb breezily.
Applications:
1. Freestanding Oven
2. Built-in Oven
3. Gas Cooker
4. Steam Oven (with sealing washer)
5. Industry Oven
6. Other Home Appliances with lighting demand
Product List:
| Product Code | Power | Metallic Ring Material | Terminal Material | Terminal style |
| OLP09-801-04-A2 | 20w | Stainless Steel | Stainless Steel | Vertical |
| OLP09-801-02-A2 | 25w | Stainless Steel | Stainless Steel | Vertical |
| OLP09-801-02-A5 | 20w | Stainless Steel | Stainless Steel | Wire+Terminal |
| OLP09-801-04-A5 | 25w | Stainless Steel | Stainless Steel | Wire+Terminal |
| OLP14-801-01-A2 | 15w | Galvanized Steel | Stainless Steel | Vertical |
| OLP14-801-01-A4 | 15w | Copper | Copper | Vertical |
| OLP14-801-02-A2 | 25w | Galvanized Steel | Stainless Steel | Vertical |
| OLP14-801-02-A4 | 25w | Copper | Copper | Vertical |
| OLP14-801-03-A2 | 40w | Galvanized Steel | Stainless Steel | Vertical |
| OLP14-801-03-A4 | 40w | Copper | Copper | Vertical |
